LED screen installation
- Site survey, wall and truss review, layout drawings
- Mounting frames, cabinet and module installation, alignment
- Power distribution, data cabling and clean cable management
- Flown, wall-mounted and ground-supported builds
30% off everything until October 30.
Equipment, installation, configuration and training are quoted after we review your venue and needs, and every quote you request before midnight CT on October 30 is 30% off. Tap any “quote” button below and the discount is applied to your quote. Photos marked “WILTL Studios project photo” are our own installs; equipment pictures are WILTL product illustrations, so confirm exact models before ordering.
Install. Configure. Program.
Each service is available on its own or as one complete LED package. Quoted after reviewing your room and goals.
Processor & system configuration
- Processor setup, sending and receiving cards, cabinet mapping
- Brightness, color and seam calibration
- Inputs, scaling, EDID, presets and backup signal paths
- Documentation and a clear handover
Content & programming
- Content design sized to your exact wall resolution
- Playback and media-server setup, scenes and cue programming
- Lyrics, announcements, looks and live-event workflows
- Operator training so your team runs it with confidence
An LED wall build, start to finish

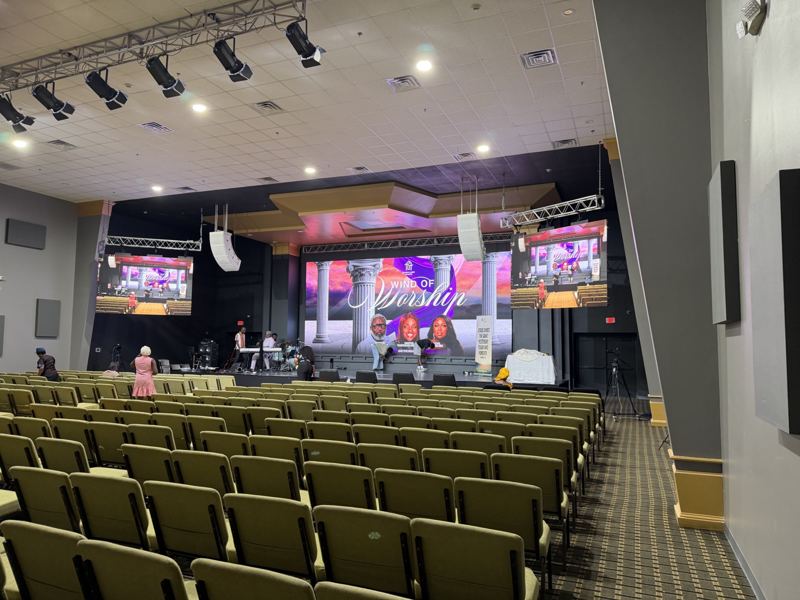

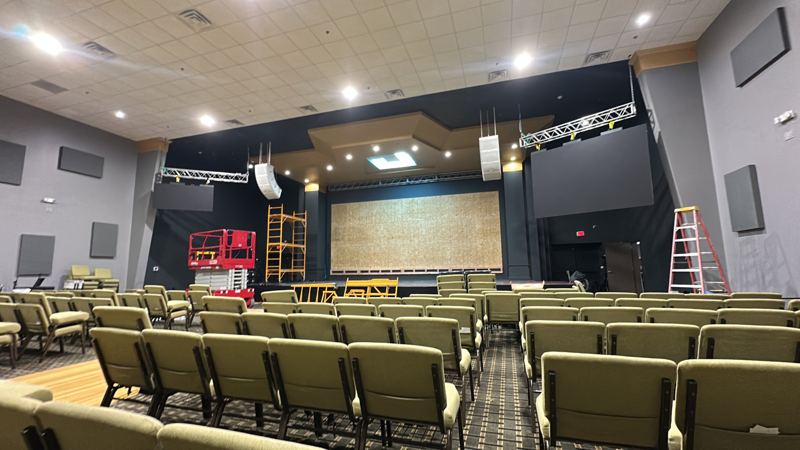

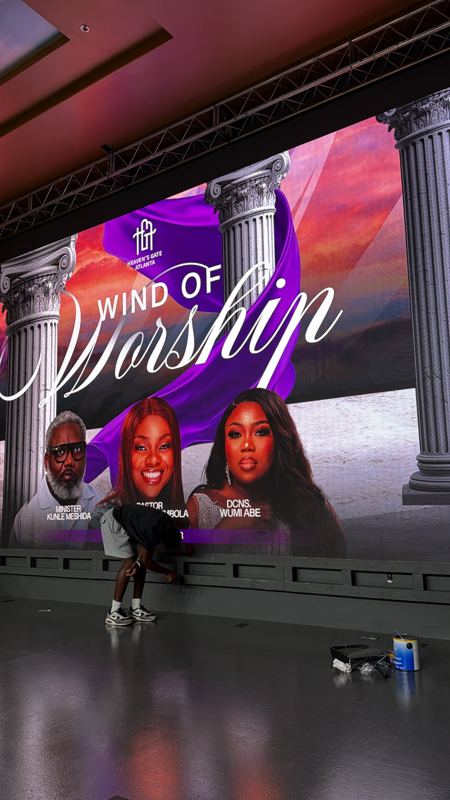

Photos from a sanctuary installation: blank wall to live content. Tap any photo to expand.
LED wall configurations
We adapt panel type, pixel pitch, geometry, support and brightness to the venue.
POPULAR

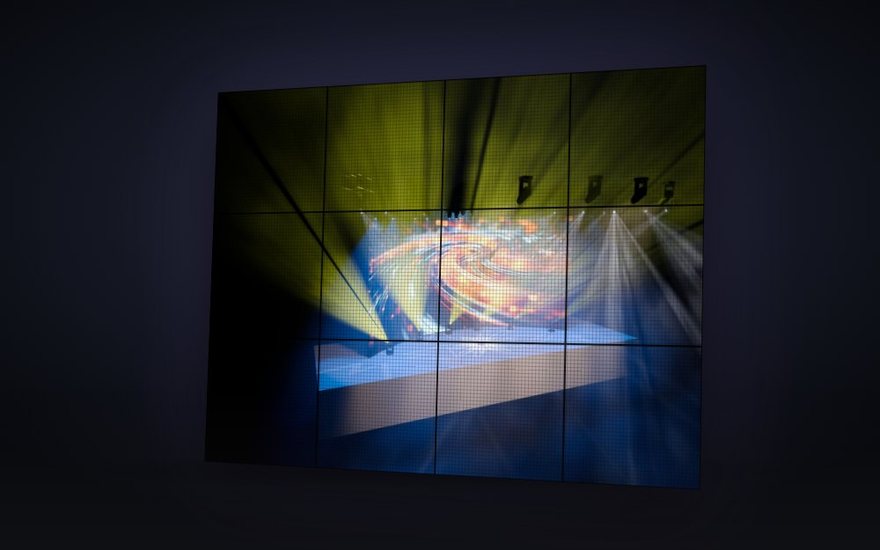

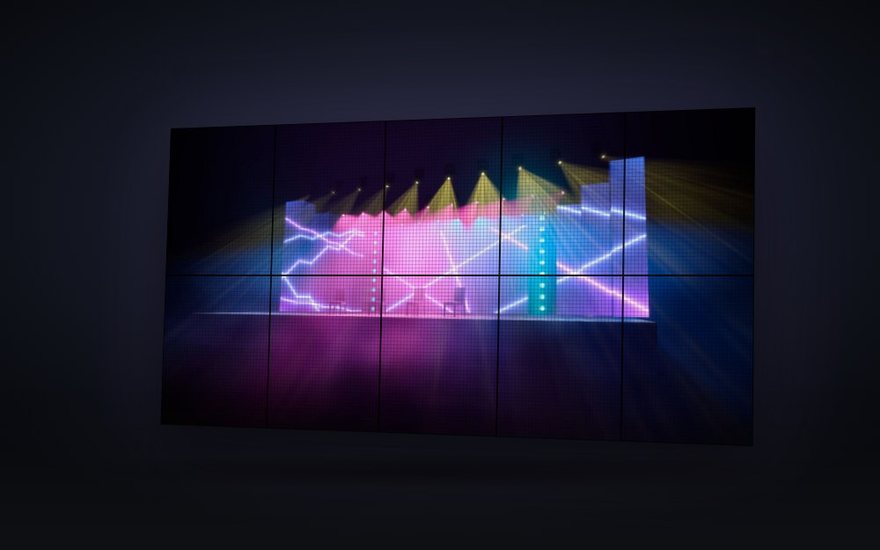

Straight LED walls
Seamless front or side walls for churches, event venues, retail, corporate stages and studios.
Request installation quote ↗CUSTOM QUOTE

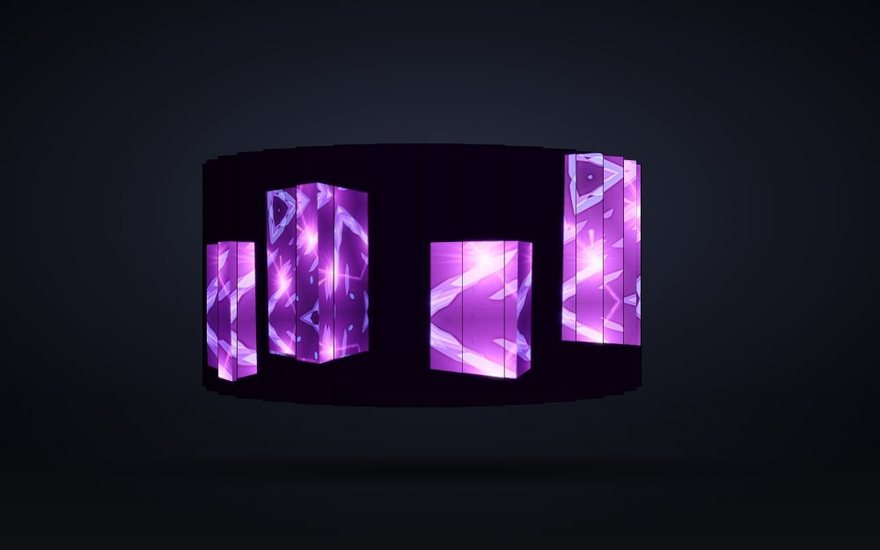

Curved & wraparound LED
Concave, convex and immersive scenic configurations with suitable flexible or curved cabinets.
Request installation quote ↗CUSTOM QUOTE
Elevated / flown LED
Engineered overhead or raised installations with appropriate rated rigging and structural review.
Request installation quote ↗CUSTOM QUOTE
Ground-supported & mobile LED
Modular floor-stacked, touring and temporary installations for changing event layouts.
Request installation quote ↗CUSTOM QUOTE

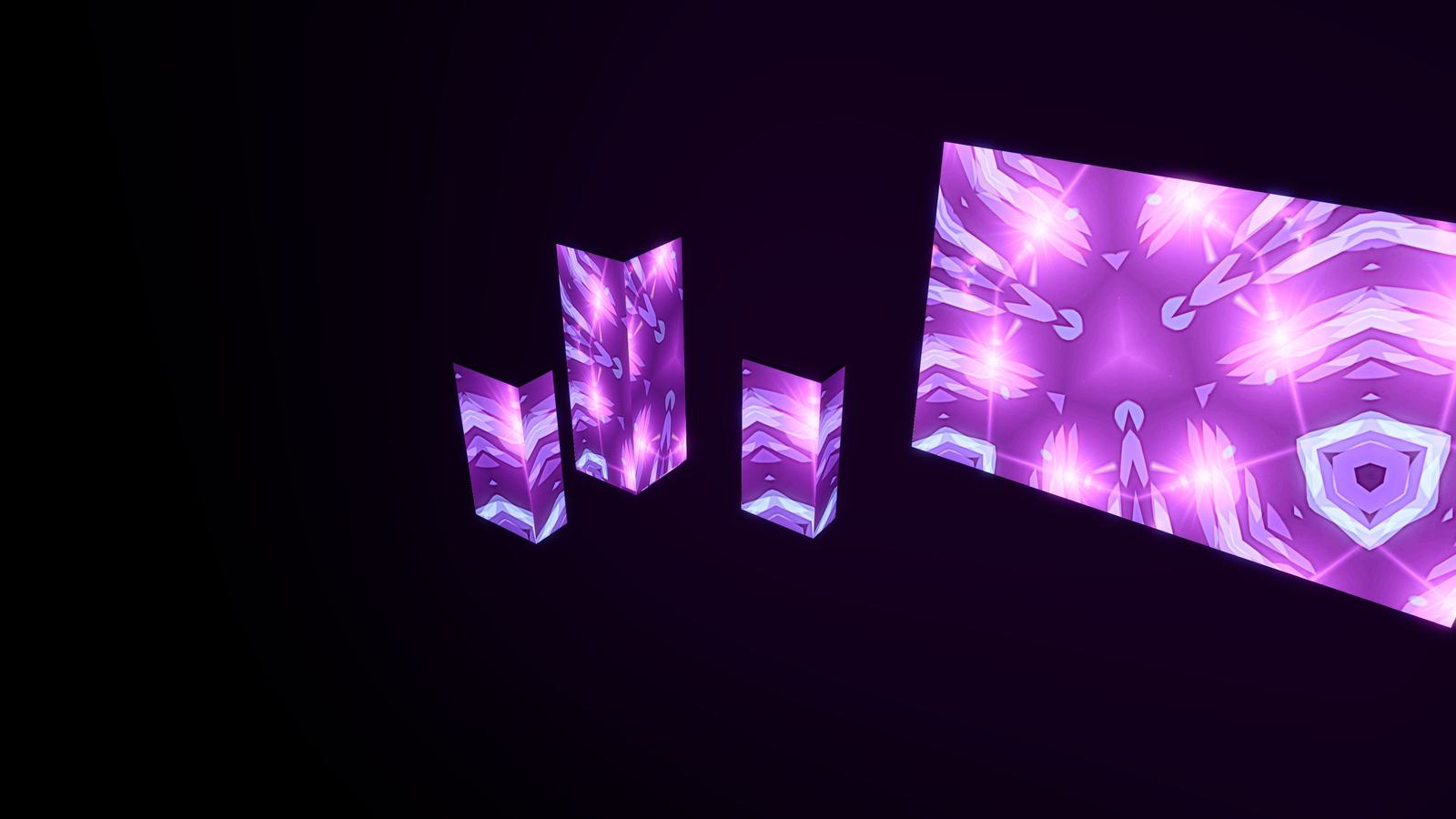

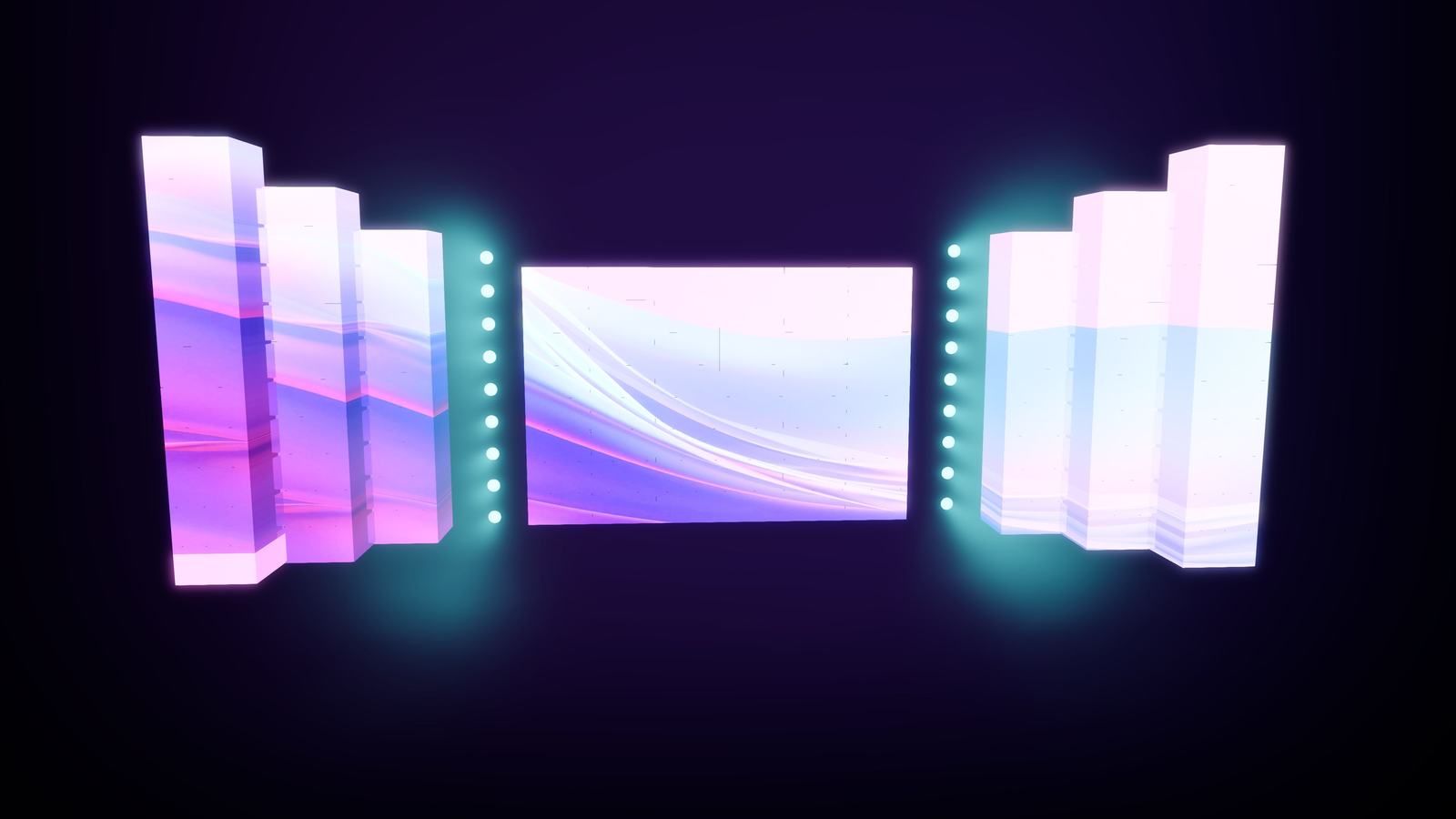

Creative LED columns & scenic shapes
Segmented displays, angled corners, columns, portals and unconventional scenic concepts.
Request installation quote ↗CUSTOM QUOTE

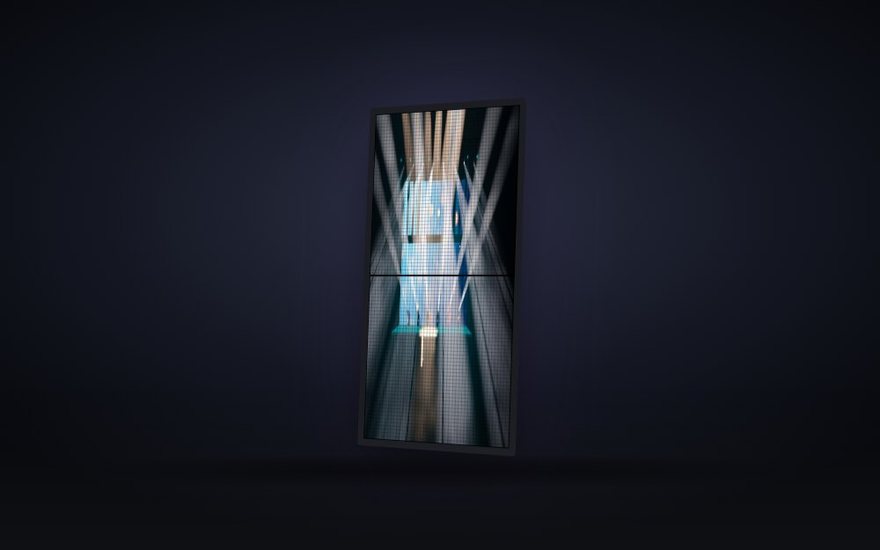

Outdoor & high-brightness LED
Weather-appropriate cabinets, viewing-distance planning and safe power distribution.
Request installation quote ↗Processors & controllers we install
The brains of the wall. Real equipment photos from the manufacturers and their dealers; every image links to its source.
CONTROLLER

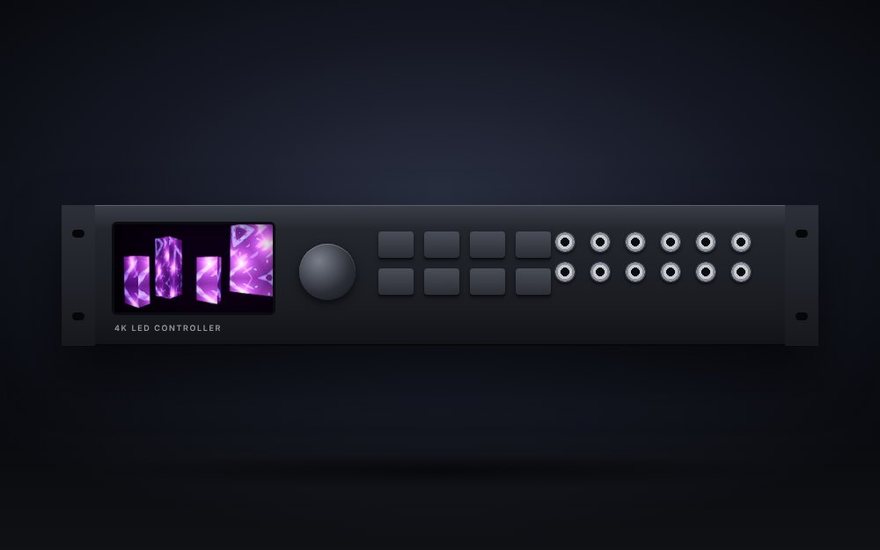

NovaStar MX40 Pro
4K all-in-one LED controller for NovaStar-based walls. We install, map and configure it with your cabinets.
CONTROLLER

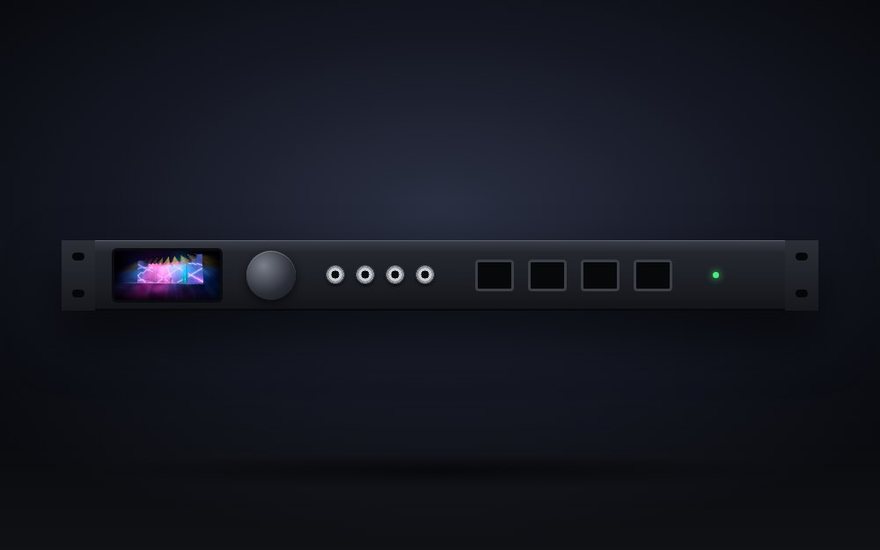

NovaStar MCTRL4K
4K LED display controller for large walls and multi-output layouts, set up with full screen mapping and calibration.
PROCESSOR

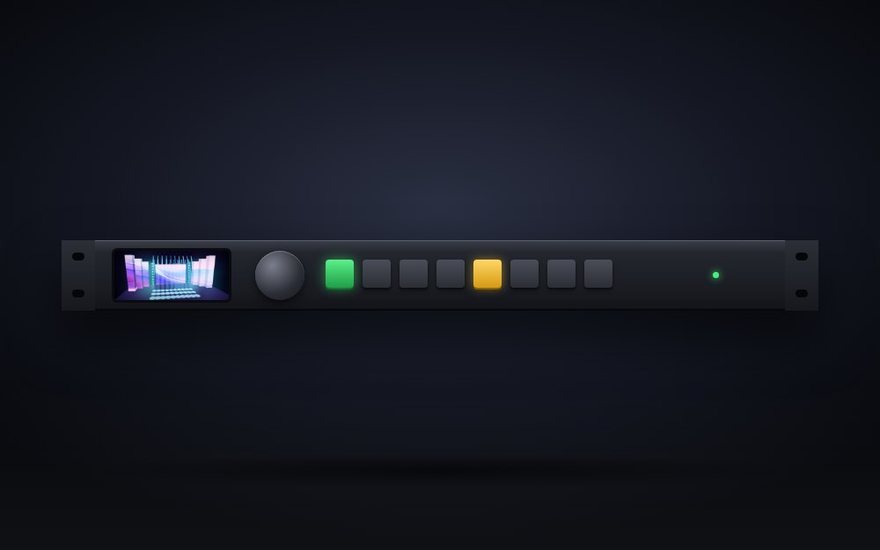

NovaStar VX16S
All-in-one processor for compact and mid-size walls: inputs, scaling and cabinet outputs in one unit.
PROCESSOR

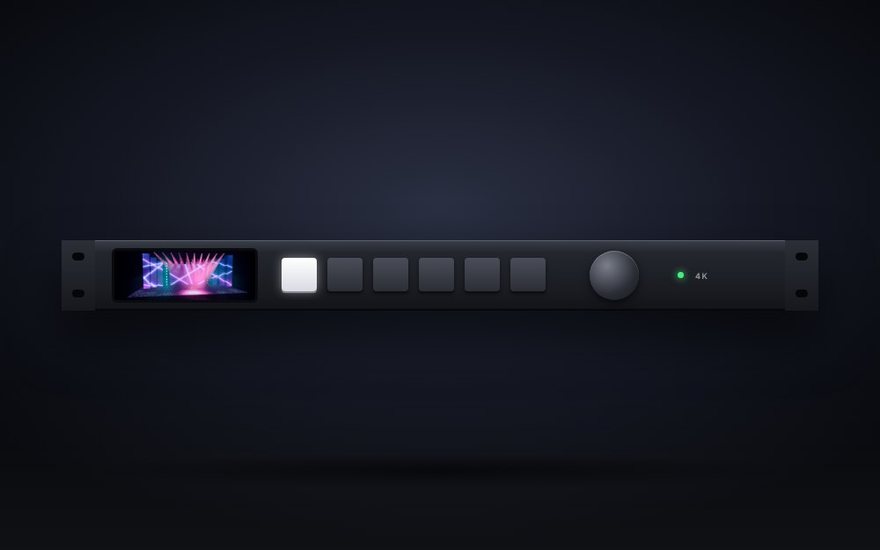

Brompton Tessera SX40
4K processor used on high-end live and broadcast walls, where color accuracy and camera performance matter.
Processors, media servers & VJ workflows
From content playback to reliable pixel mapping and screen calibration.
Product illustration by WILTL StudiosCUSTOM QUOTE
NovaStar processors & configuration
Processor installation, cabinet mapping, sending/receiving card configuration, EDID, calibration and redundancy planning.
Request installation quote ↗Connects with: LED processing · compatible receiving cards, cabinet mapping and network outputs. Confirm exact model and formats before ordering.

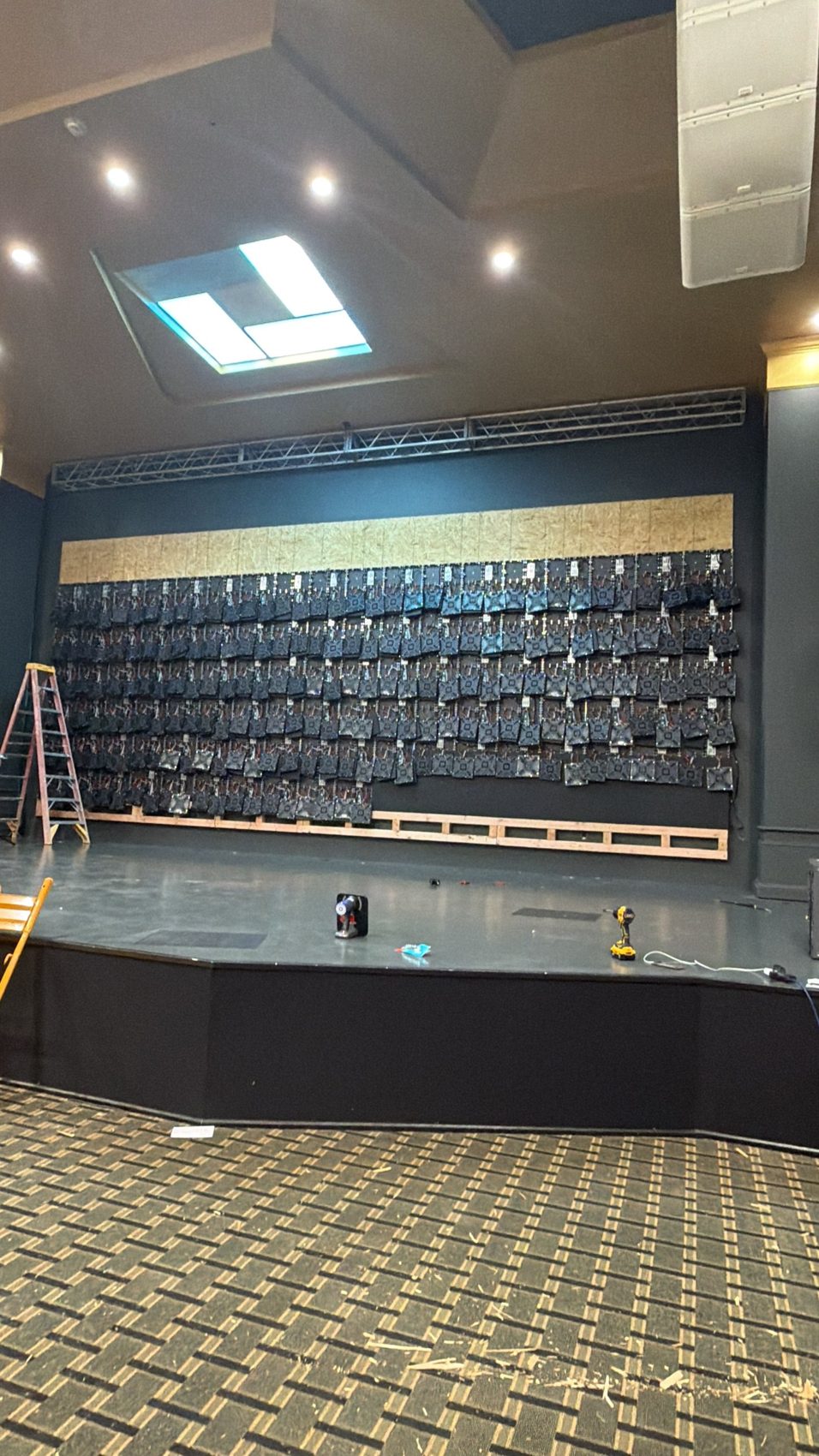

WILTL Studios project photo: LED wall framingCUSTOM QUOTE
Video distribution & scaling
Source switching, converters, scaling, fiber/SDI/HDMI transport and proper signal-path documentation.
Request installation quote ↗

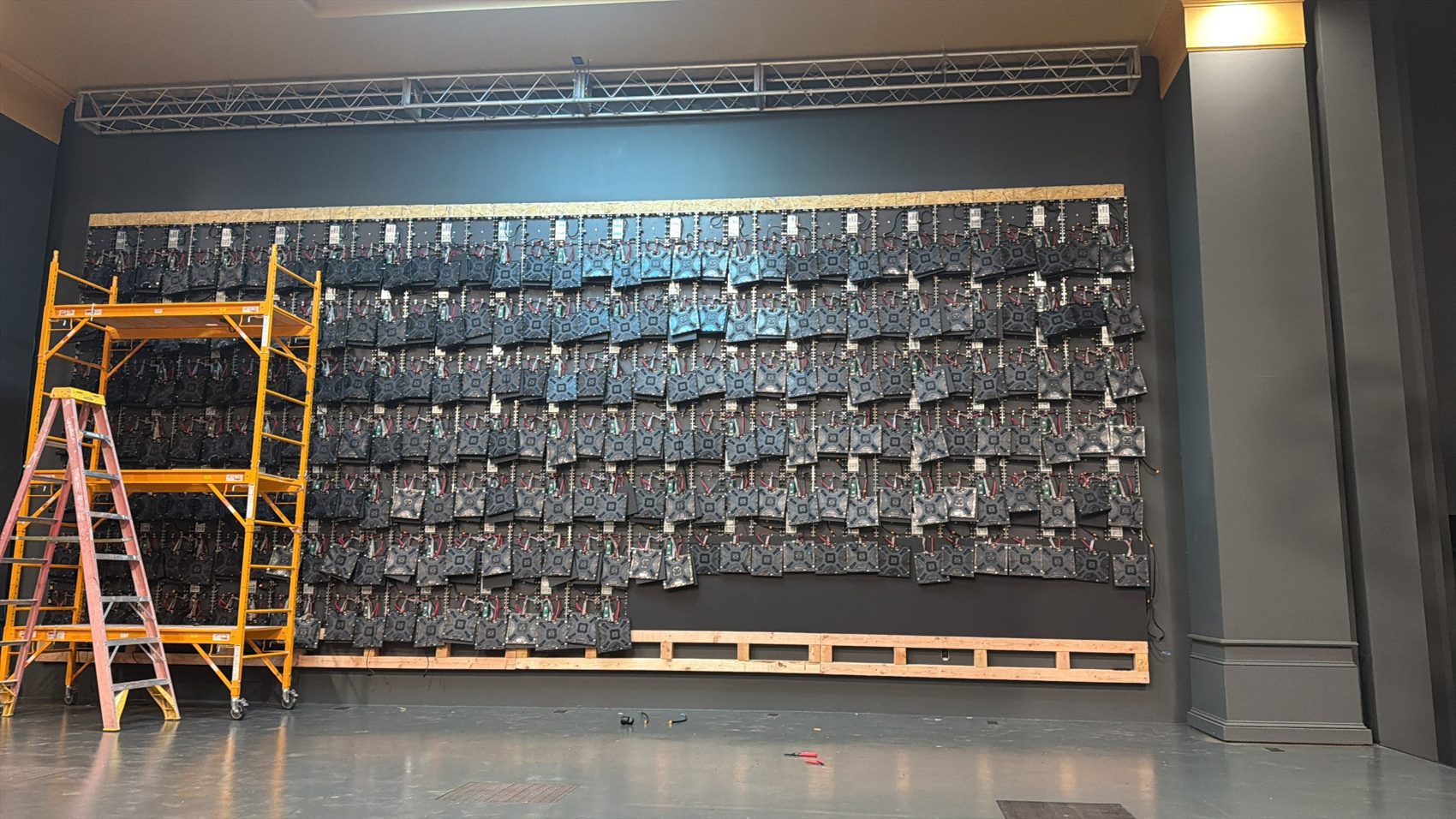

WILTL Studios project photo: cabinet installCUSTOM QUOTE
VJ computer setup
Dedicated playback/VJ workstation setup, GPU/output mapping, resolution planning and show-ready content workflows.
Request installation quote ↗
WILTL Studios render: LED layout studyCUSTOM QUOTE
Content & LED visualization
Screen dimensions, canvas layouts, scenic previews, pixel-perfect content templates and operator training.
Request installation quote ↗Professional installation services
A complete installation includes more than attaching cabinets.

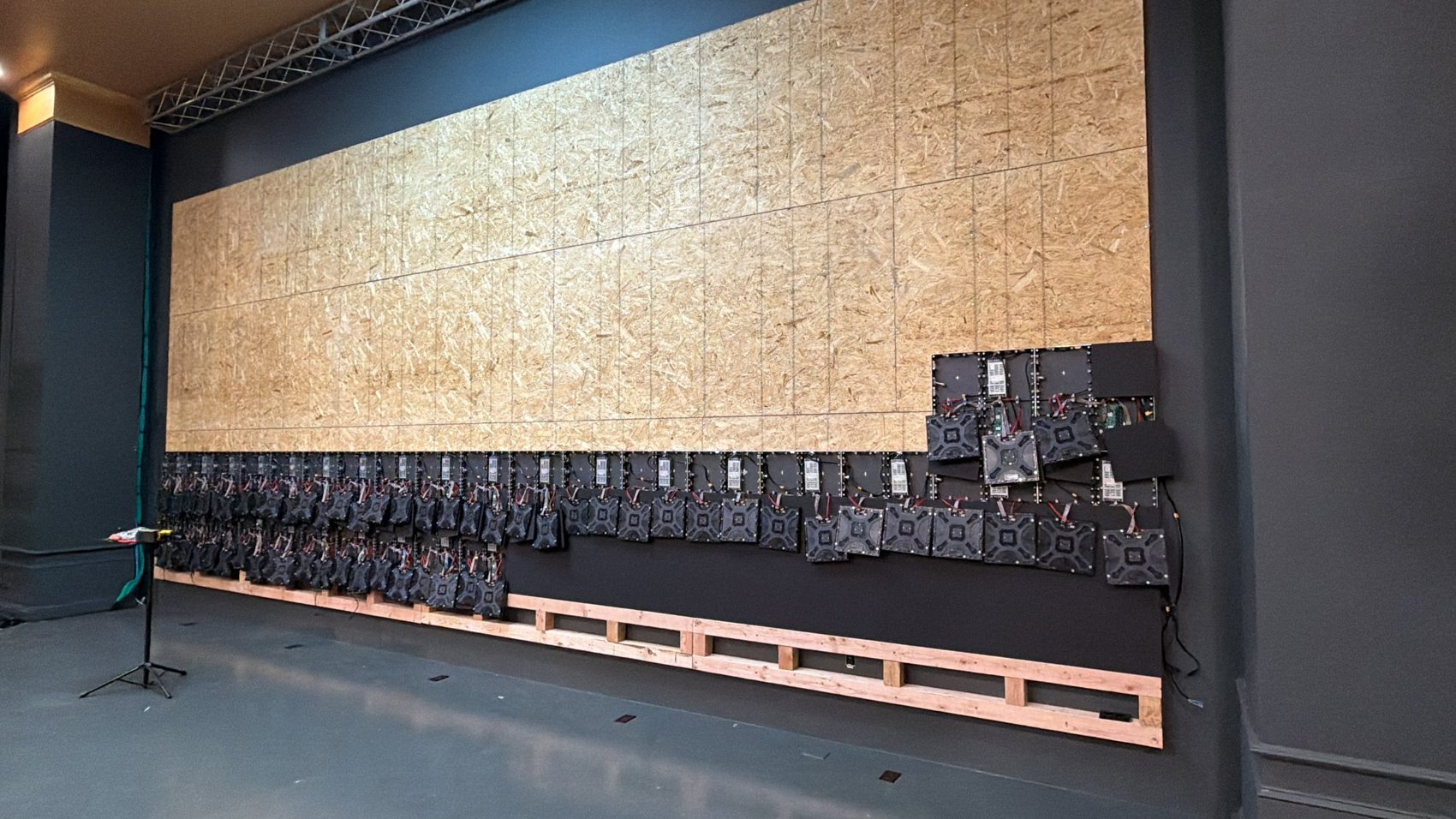

WILTL Studios project photo: wall buildCUSTOM QUOTE
Site survey & 3D previsualization
Room measurements, viewing angles, mounting concepts and approval-ready renderings.
Request installation quote ↗
WILTL Studios render: LED previsualizationCUSTOM QUOTE
Mounting, safety & structural planning
Ground support, wall-mount or flown system planning with qualified structural/rigging professionals where required.
Request installation quote ↗
WILTL Studios project photo: structure and riggingCUSTOM QUOTE
Power & cable management
Load calculations, circuit coordination, clean data runs, strain relief, labeling and service access.
Request installation quote ↗
WILTL Studios project photo: finished installCUSTOM QUOTE
Testing, training & support
Cabinet alignment, pixel mapping, spare strategy, documentation and handover training.
Request installation quote ↗Build a system that actually fits your venue.
Send room dimensions, photos, current equipment and your target budget. We will recommend a phased system and provide an itemized quote.
